Features

• That the controller should function as an EtherCAT master
• What field devices should be addressed
• What form the topology of the network takes
• What parameter values should be sent to the slaves upon startup

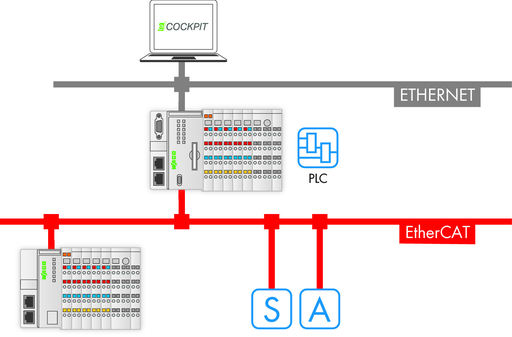

• Using the PFC200 as an EtherCAT Master
• Controlling WAGO slaves with the EtherCAT fieldbus system, e.g., the EtherCAT fieldbus coupler of the WAGO-I/O-SYSTEM 750
• Controlling additional field devices, which can be declared in e!COCKPIT via a standardized device description
• CoE (CANopen / CAN over EtherCAT)
• FoE (File over EtherCAT),
• VoE (Vendor over EtherCAT)

Specifications

System Requirements

• Other required software: e!COCKPIT version: V1.5.0

Software Data

• Supported devices: 750-8212: PFC200; G2; 2ETH RS || 750-8213: PFC200; G2; 2ETH CAN || 750-8214: PFC200; G2; 2ETH RS CAN || 750-8215: PFC200; G2; 4ETH CAN USB || 750-8216: PFC200; G2; 2ETH RS CAN DPS || Besides the basic controller variants listed here, the license can also be used on these controllers’ variants. For details, see the product information of the corresponding controller. For detailed information on the controllers, go to: www.wago.com/itemnumbers

Delivery

• Delivery type: License certificate via email (e!COCKPIT already contains the software itself)
• License type (note): The single license allows installation on one controller. One license per controller is required.
• Note on license type (2): A PC with both Internet connection and e!COCKPIT may be required for license activation.

Commercial Data

• Country of origin Sales Organisation Germany: DE
• GTIN: 4055143801478
• Customs tariff number Sales Organisation Germany: 88888888888
