Features

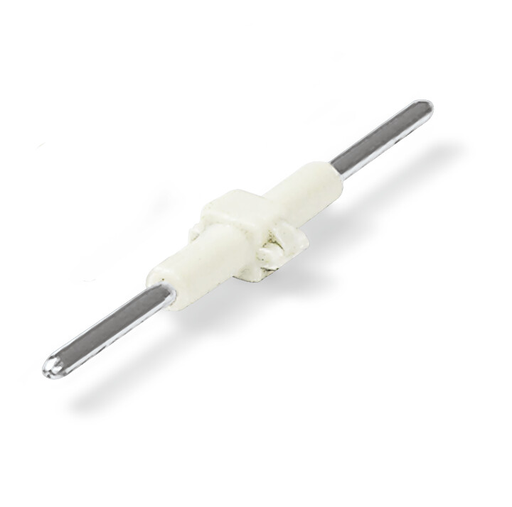

• Board-to-board links simplify LED module assembly
• Easy push-in connection and disconnection

Approvals

• DEKRA Certification B.V., CCA, NTR NL 7725/M1, EN 60998
• DEKRA Certification B.V., KEMA/KEUR, 71-108183, EN 60947
• Underwriters Laboratories Inc., cURus, E45171, UL 1977
• DEKRA Certification B.V., CCA, NTR NL 2168246, EN 60838
• DEKRA Certification B.V., KEMA/KEUR, 71-114208, EN 60947-7-4
• DEKRA Certification B.V., CCA, NTR NL-7724, EN 60947
• DEKRA Certification B.V., CCA, NTR NL 7843, EN 60947-7-4
• DEKRA Certification B.V., KEMA/KEUR, 71-109040, EN 60998
• Underwriters Laboratories Inc., UL, E45172, UL 1059
• DEKRA Certification B.V., KEMA/KEUR, 2168246.01, EN 60838

Specifications

Notes

• Safety information 1: NOTE: Only suitable for 2060-45x, not for 2060-40x.

Ratings Per Iec/En

• Ratings per: IEC/EN 60664-1
• Nominal voltage (III/3): 63 V
• Rated surge voltage (III/3): 2.5 kV
• Rated voltage (III/2): 160 V
• Rated surge voltage (III/2): 2.5 kV
• Nominal voltage (II/2): 320 V
• Rated surge voltage (II/2): 2.5 kV
• Rated current: 9 A
• Legend (ratings): (III / 2) ≙ Overvoltage category III / Pollution degree 2

Ratings Per Ul

• Rated voltage UL 1977: 250 V
• Rated current UL 1977: 9 A

Connection 1

• Pole No.: 1

Physical Data

• Pin spacing: 4 mm / 0.157 inch
• Width: 3.4 mm / 0.134 inch
• Height: 2.6 mm / 0.102 inch
• Depth: 28 mm / 1.102 inch

Mechanical Data

• Mating cycles (max.): 10
• Number of mating cycles: Max. 10 connections/disconnections
• Suitable: For SMD PCB terminal blocks (2060 Series)

Material Data

• Color: White
• Material group: I
• Insulation material: Polyamide (PA66)
• Flammability class per UL94: V0
• Contact material: Copper alloy
• Contact plating: Silver-plated
• Fire load: 0.000 MJ
• Weight: 0.230 g

Environmental Requirements

• Limit temperature range: -60 … +105 °C

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: CN
• GTIN: 4055143303880
• Customs tariff number Sales Organisation Germany: 85369010000
