Features

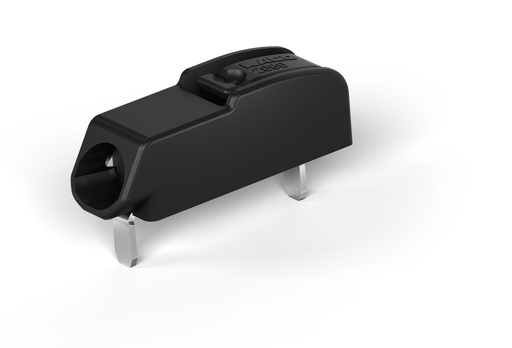

• THR PCB terminal blocks with Push-in CAGE CLAMP® connection technology and push-buttons
• Push-in termination of solid and ferruled conductors
• Convenient termination/removal of fine-stranded conductors via push-buttons
• Just 4.5 mm tall
• Available in tape-and-reel packaging for automated assembly
• Also suitable for wave soldering

Approvals

• DEKRA Certification B.V., CCA, NTR NL 7843, EN 60947-7-4
• Underwriters Laboratories Inc., cURus, E45171, UL 1977
• DEKRA Certification B.V., CCA, NTR NL 2168246, EN 60838
• DEKRA Certification B.V., KEMA/KEUR, 2168246.01, EN 60838
• DEKRA Certification B.V., KEMA/KEUR, 71-108183, EN 60947
• DEKRA Certification B.V., CCA, NTR NL-7724, EN 60947
• DEKRA Certification B.V., KEMA/KEUR, 71-109040, EN 60998
• DEKRA Certification B.V., KEMA/KEUR, 71-114208, EN 60947-7-4

Specifications

Notes

• Note: Application notes:Suitable for lead-free, reflow-soldering profiles per DIN EN 61760-1 and IEC 60068-2-58 up to max. 260°C peak temperature. Due to application-specific variables (component configuration and orientation, type of soldering machine, solder paste), trial runs are recommended to ensure product and process compatibility under actual manufacturing conditions. || Depending on reflow soldering temperatures and times, color deviations may occur. These deviations will have no impact on functionality.
• Recommendation: Recommendation for stencil:150 µm material thicknessStencil hole diameter identical to metal-plated PCB hole outer diameter

Ratings Per Iec/En

• Ratings per: IEC/EN 60664-1
• Nominal voltage (III/3): 63 V
• Rated surge voltage (III/3): 2.5 kV
• Rated voltage (III/2): 160 V
• Rated surge voltage (III/2): 2.5 kV
• Nominal voltage (II/2): 320 V
• Rated surge voltage (II/2): 2.5 kV
• Rated current: 9 A
• Legend (ratings): (III / 2) ≙ Overvoltage category III / Pollution degree 2

Ratings Per Ul

• Rated voltage UL 1977: 600 V
• Rated current UL 1977: 9 A

Connection 1

• Connection technology: Push-in CAGE CLAMP®
• Actuation type: Push-button
• Solid conductor: 0.2 … 0.75 mm² / 24 … 18 AWG
• Fine-stranded conductor: 0.2 … 0.75 mm² / 24 … 18 AWG
• Fine-stranded conductor; with insulated ferrule: 0.25 … 0.34 mm²
• Fine-stranded conductor; with uninsulated ferrule: 0.25 … 0.34 mm²
• Strip length: 6 … 7 mm / 0.24 … 0.28 inch
• Conductor connection direction to PCB: 0 °
• Pole No.: 1

Physical Data

• Pin spacing: 4 mm / 0.157 inch
• Width: 3.9 mm / 0.154 inch
• Height: 6.9 mm / 0.272 inch
• Height from the surface: 4.5 mm / 0.177 inch
• Depth: 12.7 mm / 0.5 inch
• Solder pin length: 2.4 mm
• Solder pin dimensions: 1.2 x 0.75 mm
• Plated through-hole diameter (THR): 1.5 (+0.1) mm
• Reel diameter of tape-and-reel packaging: 330 mm
• Tape width: 24 mm

Pcb Contact

• PCB Contact: THR
• Solder pin arrangement: Over the entire terminal strip (in-line)
• Number of solder pins per potential: 2

Material Data

• Color: Black
• Material group: I
• Insulation material: Polyphthalamide (PPA GF)
• Flammability class per UL94: V0
• Clamping spring material: Copper alloy
• Contact material: Copper alloy
• Contact plating: Tin-plated
• Fire load: 0.000 MJ
• Weight: 0.250 g

Environmental Requirements

• Limit temperature range: -60 … +105 °C

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: CN
• GTIN: 4055143331234
• Customs tariff number Sales Organisation Germany: 85369010000
