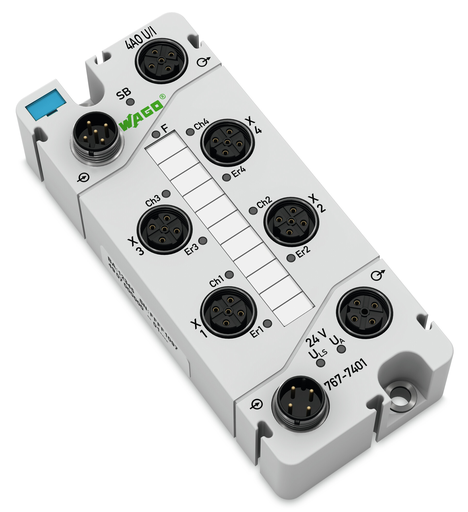

Features

• 1 x WMB marker, blue
• 1 x marking strip
• 2 x M12 protective cap

Approvals

• UL International Germany GmbH, UL, E175199 Sec.5, UL 508

Specifications

Technical Data

• Number of analog outputs: 4
• Total number of channels (module): 4
• Signal type: Current || Voltage
• Signal type (current): 0 … 20 mADC; 4 … 20 mADC
• Voltage signal type: 0 … 10 VDC; -10 … +10 VDC
• Signal type (configurable): Yes
• Actuator connection: 4 x (2-wire, 3-wire, 4-wire); External shield via knurled nut
• Resolution [bit]: 16 bits
• Process data width: 8-byte data + status
• Parameterizable functions: I/O diagnostics (per module): Short circuit/overload (actuator supply); Undervoltage (ULS + UA) || I/O diagnostics (per channel): Short circuit (voltage); Wire break (current) || Online simulation (per module): Diagnostics || Online simulation (per channel): Lock/Unlock; Simulation value: according to measurement range; Diagnostics || Measurement range (per channel): Parameterizable || Substitute value (per channel): 0 mA or 0 V / Substitute value according to measurement range || Substitute value strategy (per channel): Switch substitute value/Hold last value || Manual mode (per channel): On/Off || Manual mode value (by channel): Value
• Short circuit protection: Electronic
• Protection: Reverse voltage protection for ULS + Uo; Overload and short circuit protection for Uo
• Load impedance (voltage output): ≥ 5 kΩ
• Load impedance (current output): ≤ 500 Ω
• Output error, reference temperature: 25 °C
• Output error, deviation (max.) of the upper-range value: 0.2 %
• Temperature coefficient: ≤ ±100 ppm/K of the largest output area
• Cycle time: Approx. 1 ms
• Measurement range: 0 … 20 mA, 4 … 20 mA, ±20 mA, 0 … 10 V, ±10 V
• Supply voltage (system and sensor): 24 VDC(-25 … +30 %); Logic and sensors (ULS)
• Power consumption (system and sensor): 28 mA
• Power consumption, system and sensor (note): Logic component only
• Supply voltage (field): 24 VDC (-25 … +30 %); Actuators (UA)
• Power consumption, field supply (module with no external load): 34 mA
• Isolation: 500 V supply/system bus
• Indicators: LED (F) red: Error status; LED (SB) green/red/orange: System bus status; LED (ULS, UA) green: Power supply status; LED (Ch1 … Ch4) yellow: Status AO 1 … AO 4; LED (Er1 … Er4) red: Error AO 1 … AO 4; Non-retentive displays
• Current carrying capacity (supply connections): 8 A
• Recovery time for resistive, inductive and capacitive loads: Approx. 1 ms
• Monotonicity: Yes
• Maximum inductive load (at current outputs): 1 mH
• Maximum capacitive load (at voltage outputs): 10 nF
• Output ripple: Approx. ±0.02 % of the measurement range
• Maximum error over the full temperature range: ≤ ±0.6 % of the measurement range
• Maximum continuous overload (without failure): 0 Ω
• Overshooting: Approx. ±0.05 % of the measurement range
• Crosstalk between channels at DC and AC voltage (50 Hz and 60 Hz): 90 dB

Connection Data

• Connection technology: inputs/outputs: 4 x M12 socket; A-coded; 5-pole
• Connection technology: field supply: 1 x M12 plug; 4-pole; A-coded; 1 x M12 socket, 4-pole, A-coded
• Connection technology: system supply: 1 x M12 socket; 4-pole; A-coded; 1 x M12 plug; 4-pole; A-coded
• Connection technology: system bus: 1 x M12 socket, 5-pole, B-coded, shielded; 1 x M12 plug, 5-pole, B-coded, shielded
• Connection requirement, permissible cable length: 30 m
• Connection requirement (permissible cable type): Analog outputs: unshielded

Physical Data

• Width: 50 mm / 1.969 inch
• Height: 35.7 mm / 1.406 inch
• Depth: 117 mm / 4.606 inch

Material Data

• Color: Light gray
• Housing material: Polyamide (PA), Makrolon (address switch cover), flammability per UL94-V0, halogen/silicon-free
• Fire load: 0.000 MJ
• Weight: 262.000 g
• Conformity marking: CE
• Encapsulation: Polyurethane (PUR), halogen/silicon-free

Environmental Requirements

• Surrounding air temperature (operation): -25 … 60 °C
• Surrounding air temperature (storage): -40 … 85 °C
• Protection type: IP67
• Protection class: III
• Operating altitude: −1000 … 2000 m; Air pressure: 1080 … 795 hPa
• Relative humidity (without condensation): 95 %
• Vibration resistance: 5g per IEC 60068-2-6
• Shock resistance: Short-term: 50g/11 ms/half-sine per IEC 60068-2-27; Long-term: 30g/6 ms/half-sine per IEC 60068-2-29
• EMC immunity to interference: Per EN 61000-6-2
• EMC emission of interference: Per EN 61000-6-4

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: DE
• GTIN: 4045454545260
• Customs tariff number Sales Organisation Germany: 85389099990
