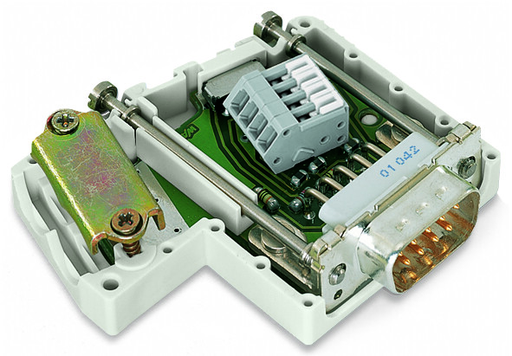

Features

• Two horizontal cable entries for both input and output.
• Fast and maintenance-free CAGE CLAMP® connection – a locking slide keeps the clampling unit in its open position
• Externally operable switch to activate or deactivate the network terminating resistor

Approvals

• UL International Netherlands B.V., UL, E175199 Sec.1, UL 508
• TUEV Nord Cert GmbH, IECEx, IECEx TUN 09.0001 X, IEC 60079-0
• Bureau Veritas S.A., BV, 13453/DO BV
• Korean Register of Shipping, KR, KR HMB05880-AC001
• Polski Rejestr Statków, PRS, TE/2236/880590/19
• TUEV Nord Cert GmbH, TUEV Nord, TÜV 07 ATEX 554086 X en., EN 60079-0
• Brjansker Zertifizierungsstelle, EAC, EAC RU C-DE.AM02.B.00163/19, TP TC 012/2011
• American Bureau of Shipping, ABS, 19-HG1821926
• Det Norske Veritas, Germanischer Lloyd, DNV GL, TAA0000194
• RINA Germany GmbH, RINA, ELE066419XG
• Lloyds Register EMEA, LR, 02/20026 (E6)
• CQST/CNEx, CCCEx, 2020312310000215, CNCA-C23-01
• Nippon Kaiji Kyokai, NK, TA17255M
• TÜV Rheinland do Brasil Ltda., INMETRO, BR-Ex_TÜV 12.1297 X, IEC 60079

Specifications

Technical Data

• Connection type: D-sub 9 plug
• Pole No.: 9
• Communication/fieldbus: PROFIBUS
• Baud rate: 12 Mbit/s (per PROFIBUS specification)
• Supply voltage: 4.75 … 5.25 VDC
• Input current: 5 mA

Connection Data

• Connection type (1): CAGE CLAMP® terminal strip with locking slide (218 Series)
• Solid conductor: 0.08 … 0.5 mm² / 28 … 20 AWG
• Strip length: 5 … 6 mm / 0.2 … 0.24 inch

Physical Data

• Width: 54 mm / 2.126 inch
• Height: 16 mm / 0.63 inch
• Depth: 45 mm / 1.772 inch

Mechanical Data

• Connectable sheathed cable diameter: 4.5 … 9.5 mm
• Cable glands (number): 2
• Housing material: PA66-105-V2
• Weight: 33.400 g
• Color: Light gray

Environmental Requirements

• Surrounding air temperature (operation): 0 … 60 °C
• Surrounding air temperature (storage): -25 … 85 °C
• Protection type: IP20
• Relative humidity (without condensation): 95 %
• Vibration resistance: 4g per IEC 60068-2-6
• Fire load: 0.623 MJ

Commercial Data

• Packaging type: Bag
• Country of origin Sales Organisation Germany: DE
• GTIN: 4045454320157
• Customs tariff number Sales Organisation Germany: 85366990990
